| SPECIFICATIONS | SFDP16000 |
|---|---|
| 8 Ohm, Stereo Output Power | 2 X 1000 W RMS |
| 4 Ohm, Stereo Output Power | 2 X 1650 W RMS |
| 8 Ohm, Bridge Watts | 2850 W RMS |
| Output circuitry | D |
| Frequency Response | 6.8Hz-34KHz |
| THD+N (1KHz) | 0. 01-0. 03% |
| S/N Rate | −104dB |
| Damping Factor | >600 |
| Crosstalk | >70 |
| Input Sensitivity | 1.2V/32dB/26dB |
| Input Impedance | >10KΩ balance/unbalance |

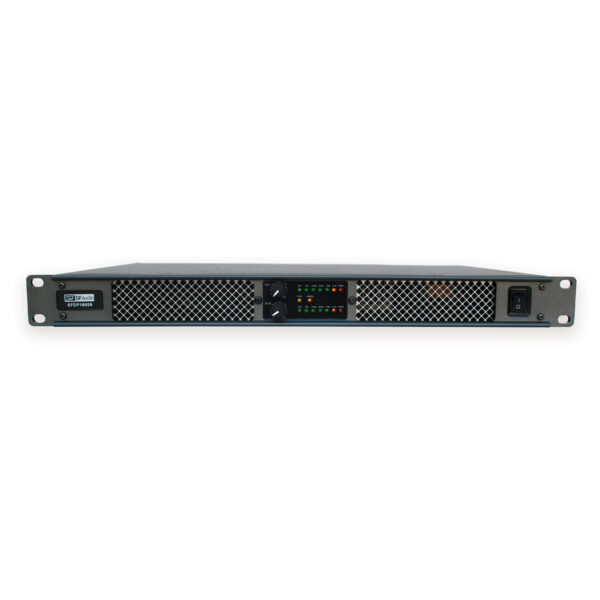

| Front panel control | Volume controller; AC power switch; LED: Power (green) |
| Bridge(orange), parallel(yellow), Signal(green)-7dB(green)/-10dB(green)/-15dB | |
| (green), Clipping (orange), Protection (red) | |

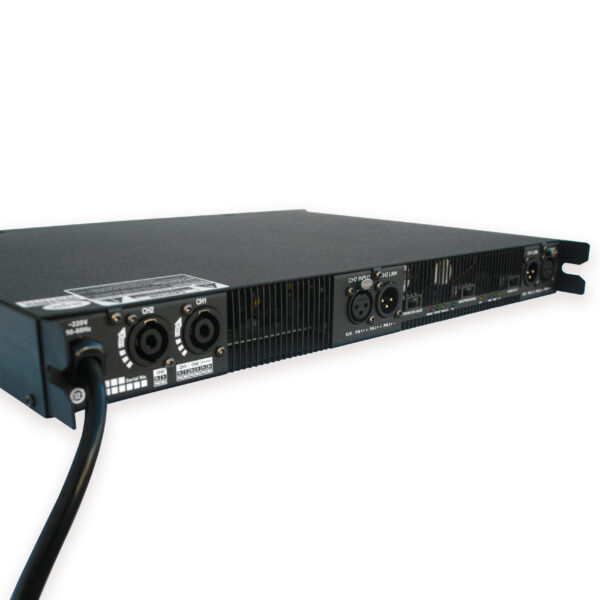

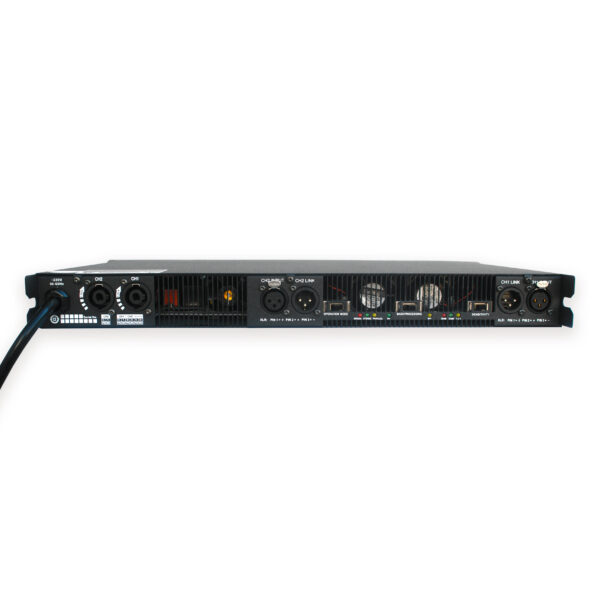

| Rear panel control | Input Mode; Parallel(yellow), Stereo(Green), bridge (red) |
| Sensitivity: 26dB(red), 32dB(green), 1.2V(yellow) | |
| BASS Processing: OFF (yellow), ON (green) | |
| Input connector | Convex/ concave Terminal XLR |
| Output connector | Speakon |
| Cooling | 3 fan, airflow from the front panel to rear panel |
| Stepless wind speed, according to the temperature | |
| Product Dimension | 483mm/19″X364.8mmX14.3″X45mm/1.7″ |
| N. Weight | 7,2 Kg |
| G. Weight | 8,9 Kg |
* No es recomendable utilizar los amplificadores en situaciones extremas. Intente evitar configuraciones sobre 2 Ohmios debido a que pueden provocar daños graves en el equipo y/o acortar severamente la vida del mismo.
